Multi-funtional Flat Packed Container Houses

Short Description:

The flat-packed container house has a simple and safe structure, low requirements on the foundation, more than 20 years design service life, and can be turned over many times. Install on site is fast,convenient,and no loss&construction waste when disassemble and assemble the houses, it has the characteristics of prefabrication, flexibility, energy saving and environmental protection, and is called a new type of “green building.”

CONTACT

Product Detail

Specifiction

Video

Product Tags

Steel structure products are mainly made of steel, which is one of the main types of building structures. Steel is characterized by high strength, light weight, good overall rigidity and strong deformation capacity, so it is particularly suitable for building long-span, ultra-high and ultra-heavy buildings; The material has good plasticity and toughness, can have large deformation, and can well bear dynamic load; Short construction period; It has a high degree of industrialization and can carry out professional production with a high degree of mechanization.

The flat packed container house consists of upper frame components, bottom frame components, column and several interchangeable wall plates,and there’re 24 sets 8.8 class M12 high-strength bolts connect the upper frame & columns, column&bottom frame to form an integral frame structure, ensures the stability of the structure.

The product can be used alone, or form a spacious space through different combinations of horizontal and vertical directions. The house structure adopts the cold-formed galvanized steel, the enclosure and thermal insulation materials are all non combustible materials, and the water, heating, electrical, decoration and supporting functions are all prefabricated in the factory. No secondary construction is required, and it can be checked in after on-site assembly.

The raw material(galvanized steel strip)is pressed into the top frame&beam, bottom frame&beam and column by the roll forming machine through the programming of the technical machine,then polished and welded into the top frame and bottom frame. For galvanized components, the thickness of galvanized layer is >= 10um, and the zinc content is >= 100g / m^₃

Internal Configuration

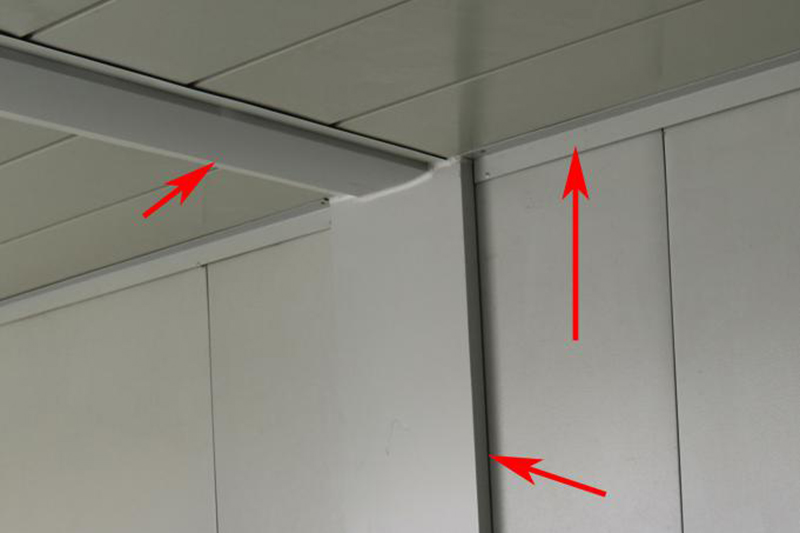

The Detail Processing of The Combined Houses

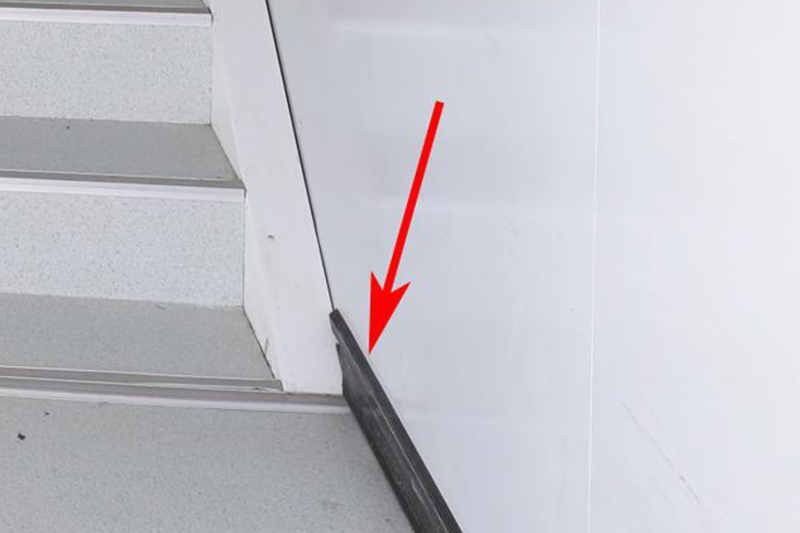

Skirting Line

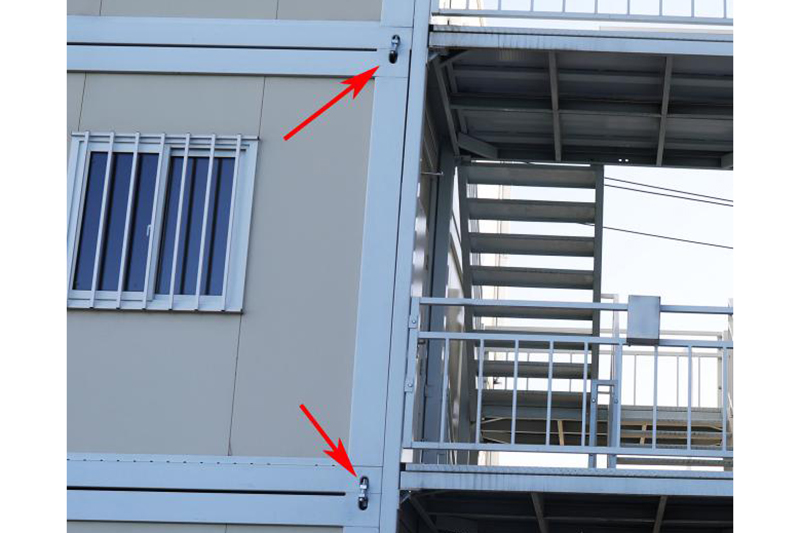

Connection Parts Among The Houses

SS Bindings Among The Houses

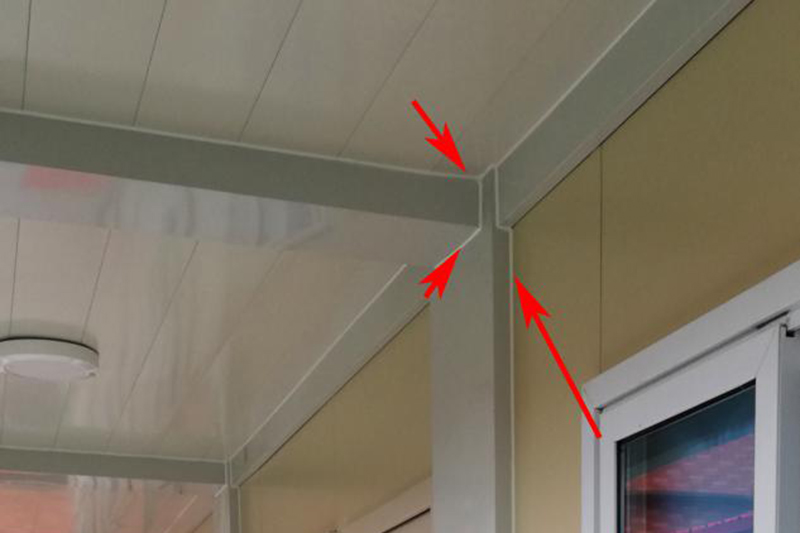

Sealing Among The Houses

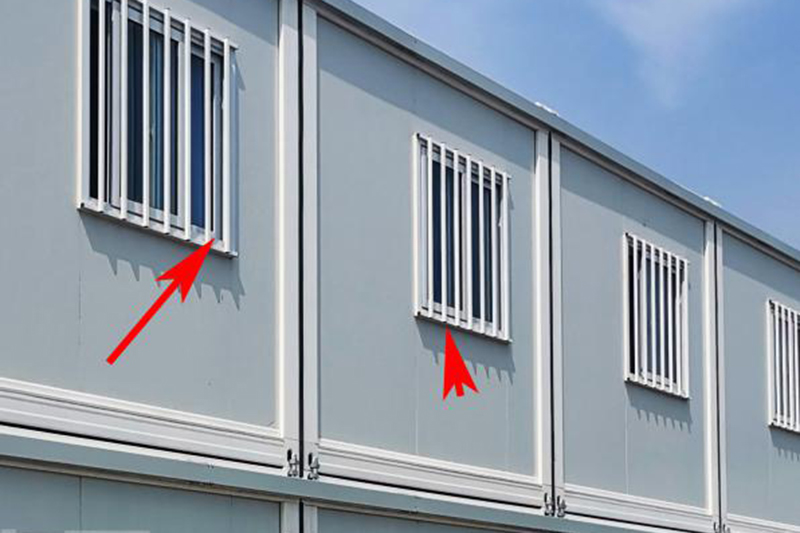

Security Windows

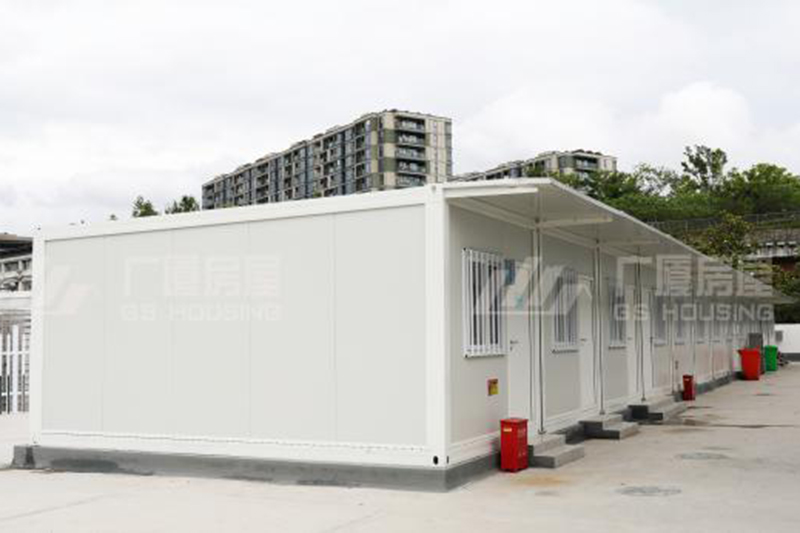

Application

Optional Internal Decoration

Can be customized, kindly contact us to discuss the details

Floor

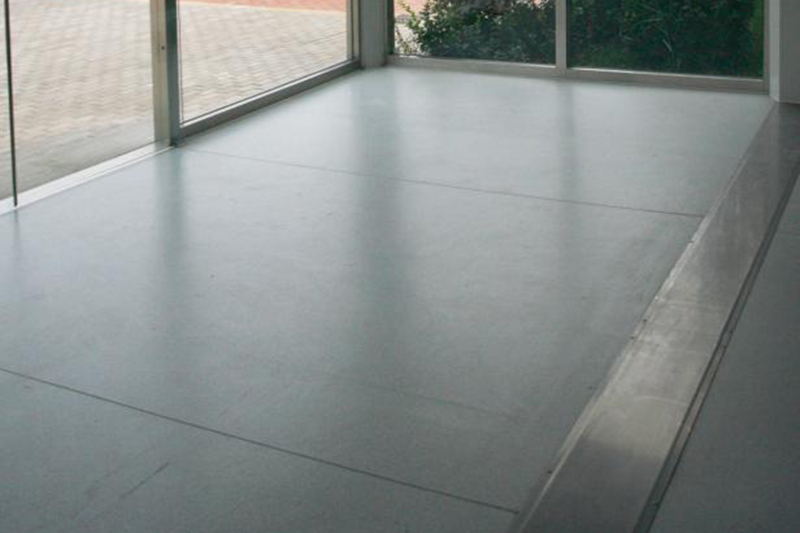

PVC carpet(standard)

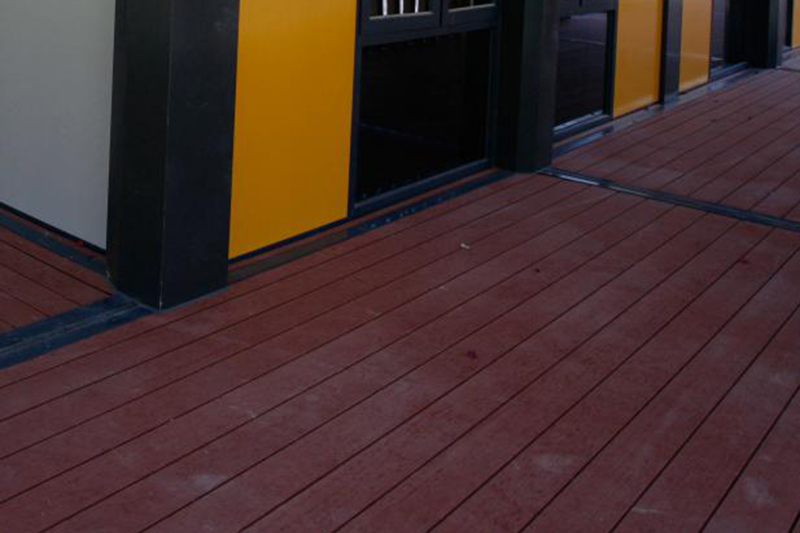

Wood floor

Wall

Normal sandwich board

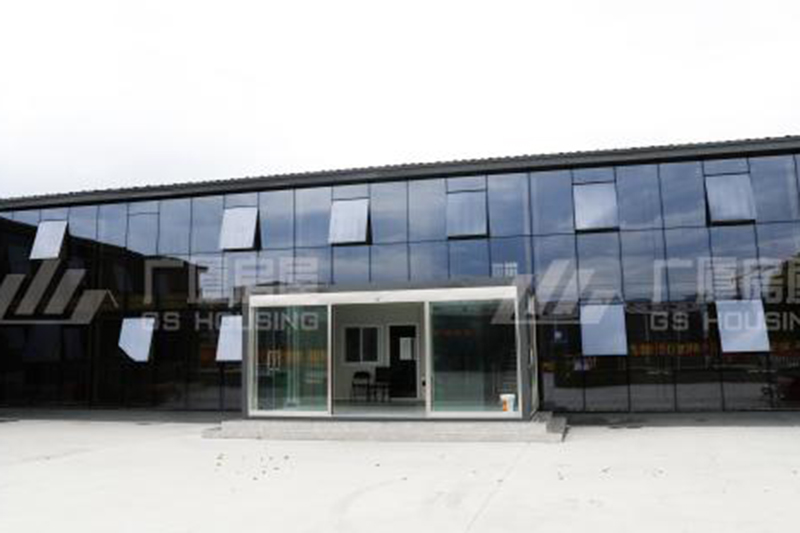

Glass panel

Ceiling

V-170 ceiling (hidden nail)

V-290 ceiling (without nail)

Surface of the wall panel

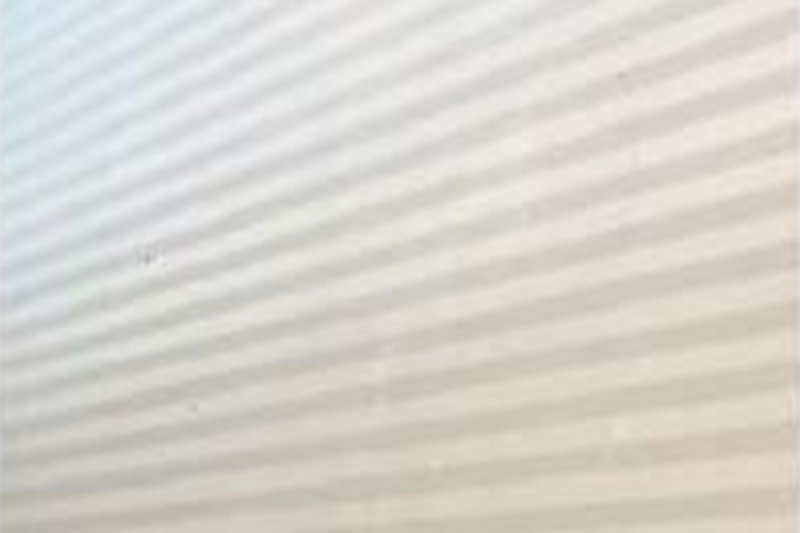

Wall ripple panel

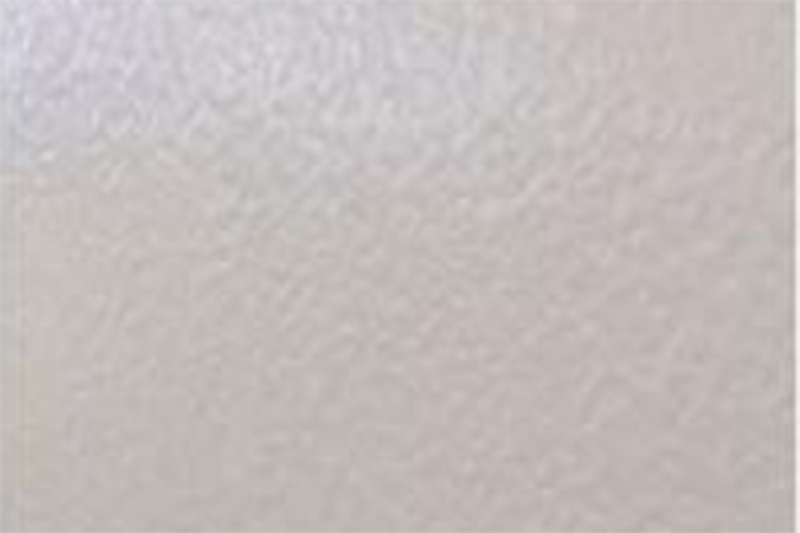

Orange peel panel

Insulation layer of the wall panel

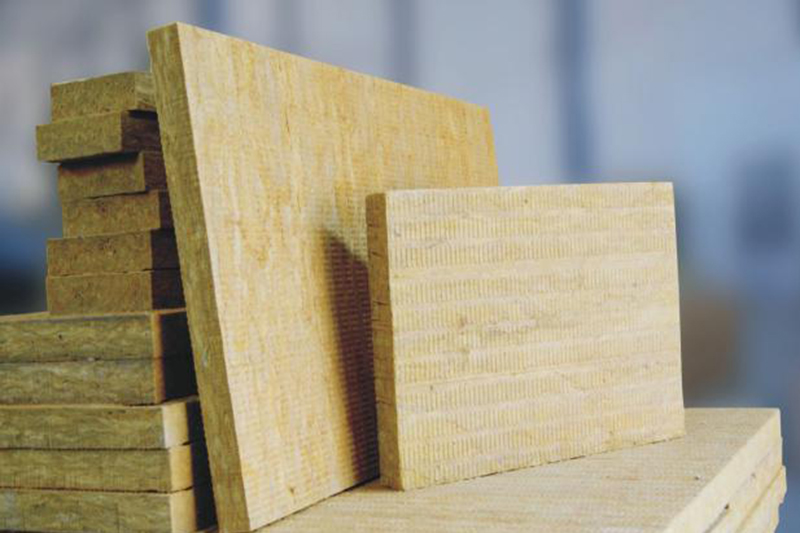

Rock wool

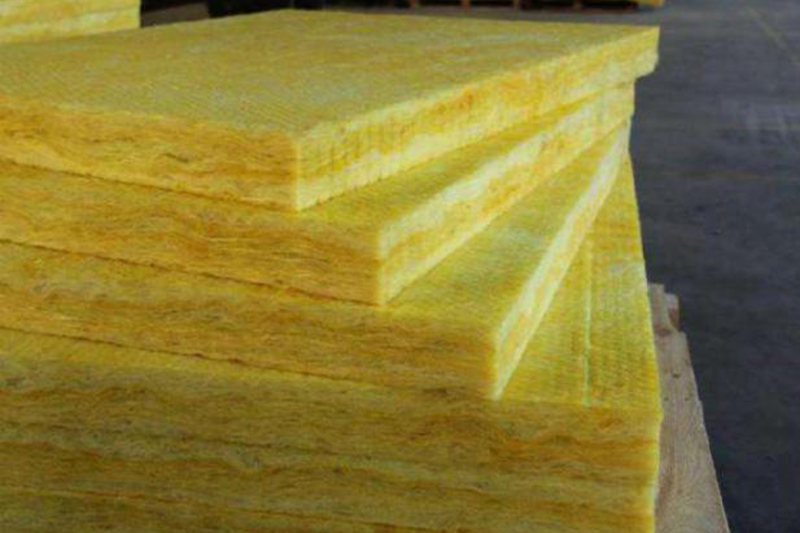

Glass cotton

Lamp

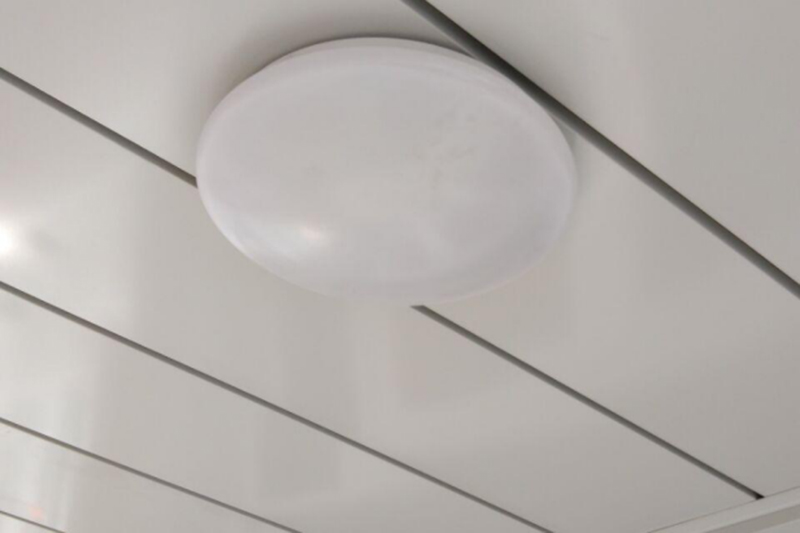

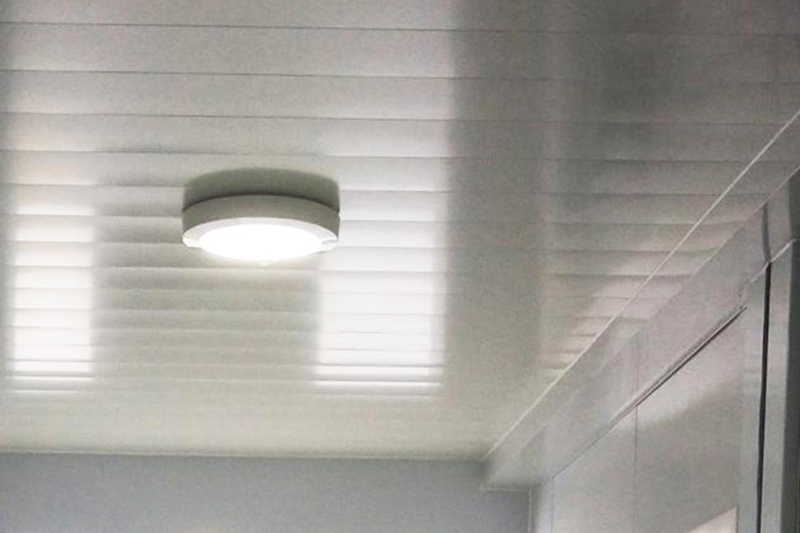

Round lamp

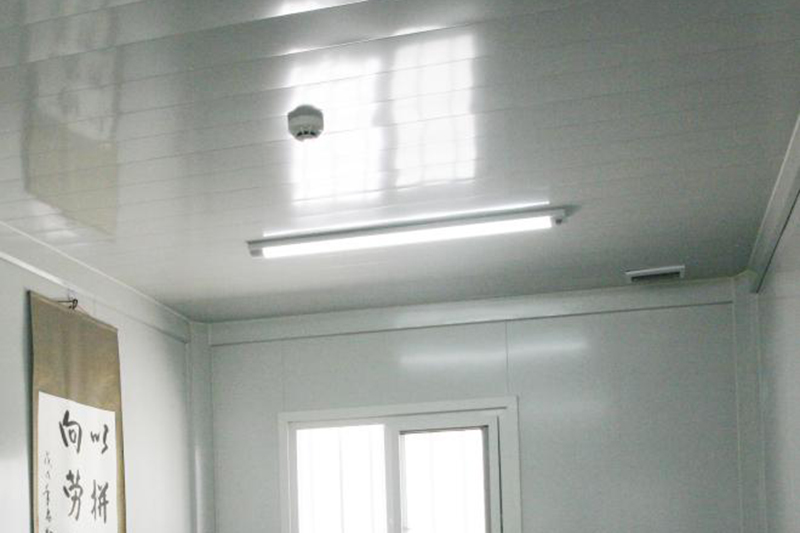

Long lamp

Package

Ship by container or bulk carrier

Previous: Low Cost Pre Built KZ Prefab Panel House

Next: Prefabricated Easy Assemable Customized Container Workers Dormitory House

Standard modular house specifiction
Specifiction	LWH（mm）	Outer size 60552990/24352896 Inner size 58452780/22252590 customzied size could be provided
	Roof type	Flat roof with four internal drain-pipes (Drain-pipe cross size:40*80mm)
	Storey	≤3
Design date	Designed service life	20 years
	Floor live load	2.0KN/㎡
	Roof live load	0.5KN/㎡
	Weather load	0.6KN/㎡
	Sersmic	8 degree
Structure	Column	Specification:210*150mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
	Roof main beam	Specification:180mm,Galvanized cold roll steel, t=3.0mm Material: SGC440
	Floor main beam	Specification:160mm,Galvanized cold roll steel, t=3.5mm Material: SGC440
	Roof sub beam	Specification:C10040122.07PCS,Galvanized cold roll C steel, t=2.0mm Material:Q345B
	Floor sub beam	Specification:120502.0*9pcs,”TT”shape pressed steel, t=2.0mm Material:Q345B
	Paint	Powder electrostatic spraying lacquer≥80μm
Roof	Roof panel	0.5mm Zn-Al coated colorful steel sheet, white-gray
	Insulation material	100mm glass wool with single Al foil. density ≥14kg/m³, Class A Non-combustible
	Ceiling	V-193 0.5mm pressed Zn-Al coated colorful steel sheet, hidden nail, white-gray
Floor	Floor surface	2.0mm PVC board, light gray
	Base	19mm cement fiber board, density≥1.3g/cm³
	Insulation(optional)	Moisture-proof plastic film
	Bottom sealing plate	0.3mm Zn-Al coated board
Wall	Thickness	75mm thick colorful steel sandwich plate; Outer plate:0.5mm orange peel aluminum plated zinc colorful steel plate, ivory white, PE coating; Inner plate:0.5mm aluminum-zinc plated pure plate of color steel, white gray, PE coating; Adopt “S” type plug interface to eliminate the effect of cold and hot bridge
Wall	Insulation material	rock wool, density≥100kg/m³, Class A Non-combustible
Door	Specification（mm）	WH=8402035mm
Door	Material	Steel
Window	Specification（mm）	Front window:WH=11501100/8001100,Back window：WXH=11501100/800*1100；
	Frame material	Pastic steel, 80S, With anti-theft rod, screen window
	Glass	4mm+9A+4mm double glass
Electrical	Voltage	220V~250V / 100V~130V
	Wire	Main wire:6㎡, AC wire:4.0㎡,socket wire:2.5㎡,light switch wire:1.5㎡

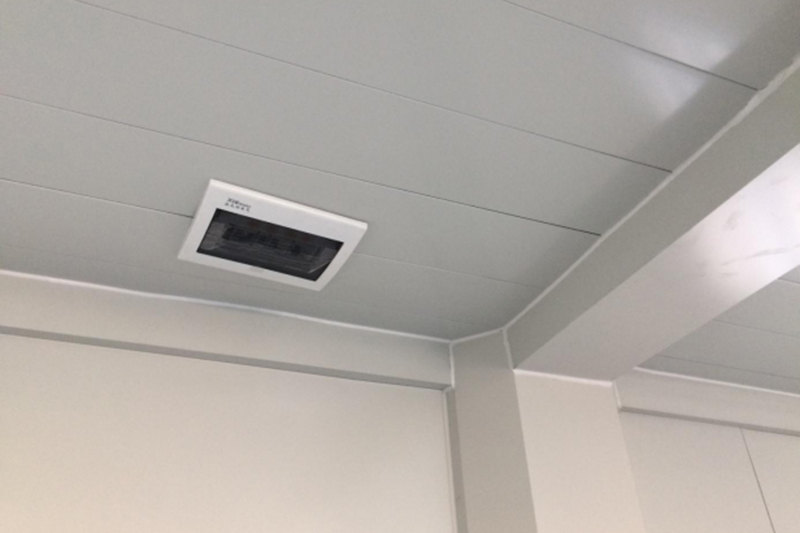

	Breaker	Miniature circuit breaker
	Lighting	Double tube lamps,30W
	Socket	4pcs 5 holes socket 10A, 1pcs 3 holes AC socket 16A, 1pcs single connection plane switch 10A, (EU /US ..standard)
Decoration	Top and column decorate part	0.6mm Zn-Al coated color steel sheet, white-gray
Decoration	Skiting	0.6mm Zn-Al coated color steel skirting, white-grey
Adopt standard construction, the equipment and fittings are accord with national standard. as well as, customized size and related facilities can be provided according to your needs.
