Integral Bathroom of Prefabricated Mobile Building Luxury Sandwich Panel Wallboard Modular Prefab Houses Container House

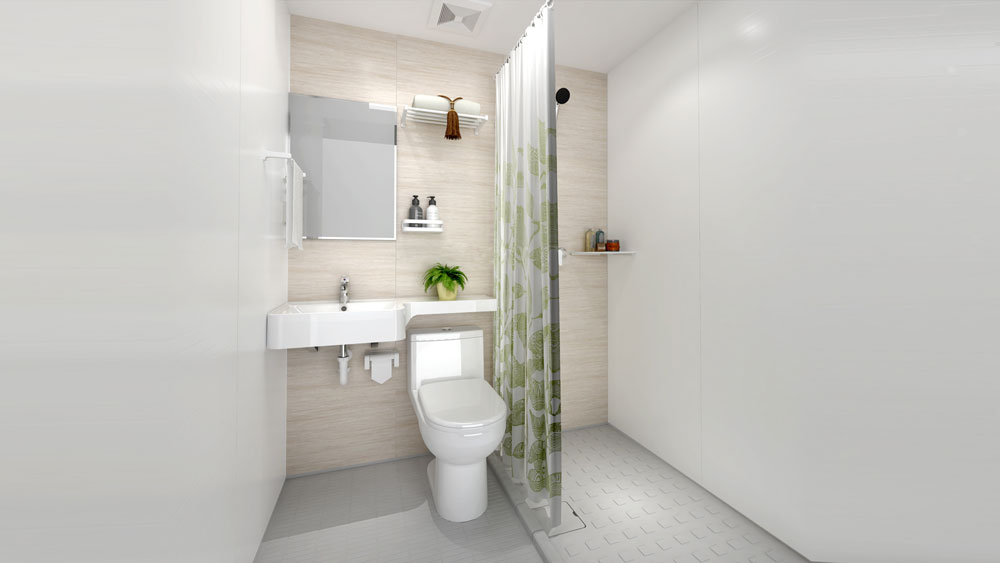

The Integral bathroom adopts an integral frame composed of an integrated waterproof chassis, wallboard and roof, which has the function of waterproof and leakproof. It integrates sanitary ware, bathroom furniture, bath screen, bathtub, faucet, shower and accessories, etc. into an overall environment, and realizes independent hygiene of washing, bathing, dressing, toileting and other functions in a limited space unit; the bathroom is more suitable for engineering projects(made of prefab house & flat packed container house & modular house & steel structure... ).
The Advantages of Integral Bathroom
1.Prevent leakage
Integrated waterproof chassis, patent waterproof reverse along and flowing water slope design, no hidden dangers of leakage;
2.The structure is firm and reliable
Separate from the structure of the building to achieve good load-bearing support;
3. Outstanding surface design
SMC surface have high surface strength, corrosion resistance, easy to clean;
4.Comfortable
Skin feeling is delicate, no cold discomfort, and good thermal insulation performance;
5.Do not need to do waterproof treatment
It has a flow gradient, the actual installation can adjust the level of shining, do not need to do waterproof;
6. Easy installation
Because it is an integral structure, the chassis is fixed directly on the base at the site;
7. Shorten the construction period
The construction is not affected by the season, compared with wet operation, the construction period is greatly shortened;
8. Integrated drainage
Integrated drainage floor drain, only need to connect the drainage pipe on site.
The Specification of Integral Bathroom
|
Main part |
Type |
Decription |
Sepcification（mm） |
|
Waterproof chassis |
SMC waterproof chassis |
1400 x 1800 |
|
|
Wallboard |
SMC Wallboard |
H=2200 |
|
|
Roof |
SMC Roof |
1400 x 1800 |
|
|
Door |
side hung door |
700 x 2000 |
|
|
Floor drain |
Integral bathroom special floor drain |
|
|
|
Accessories |
Wash |
P Shape basin |
L=1000 |
|
Basin faucet |
Single handle puckering |
||
|
Sink drainer |
Chrome plated |
||
|
Make-up mirror |
500 x 700 |
||
|
Towel rack |
ABS |
||
|
Square shelving |
ABS |
||
|
Toilet |
Toilet |
Top - press |
|
|
Paper winder |
ABS |
||
|
Shower |
Shower faucet set |
Single handle double holes |
|
|
Bath towel rack |
ABS |
||
|
Shower curtain bracket |
L=1400 |
||
|
Shower curtain |
1800x1900 |
||
|
Triangular shelving |
ABS |
||
|
Electric appliance |
LED light |
4000K, 3W,φ87 |
|
|
Ventilator |
258x258 |
||
|
Waterproof socket |
Five holes/with splash proof box |

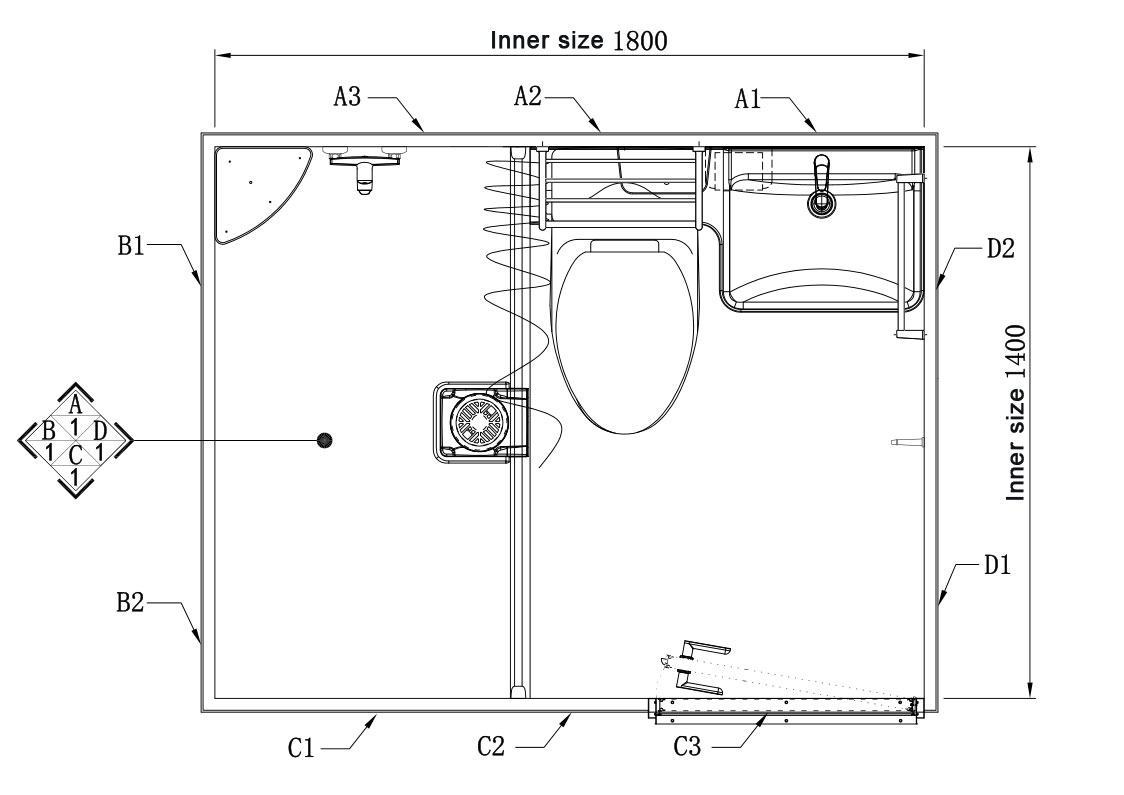

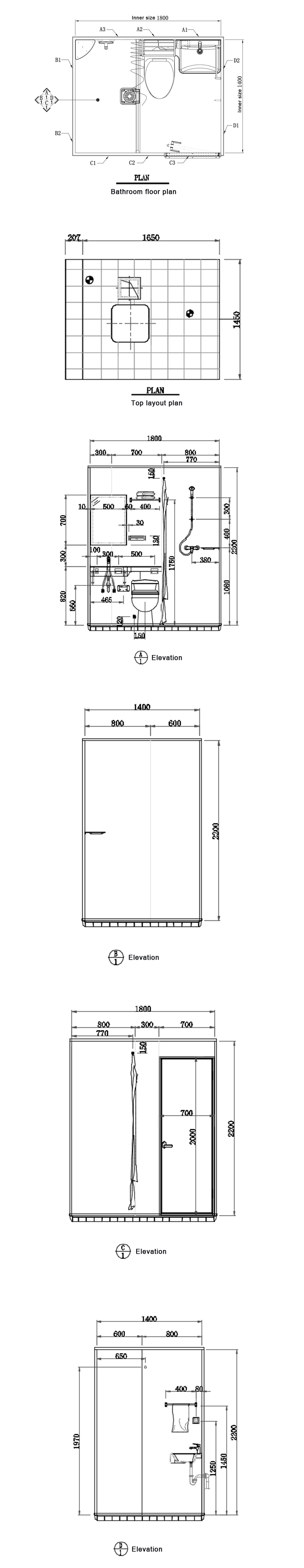

The Design of Integral Bathroom
